Light Series
These Lights Change Everything

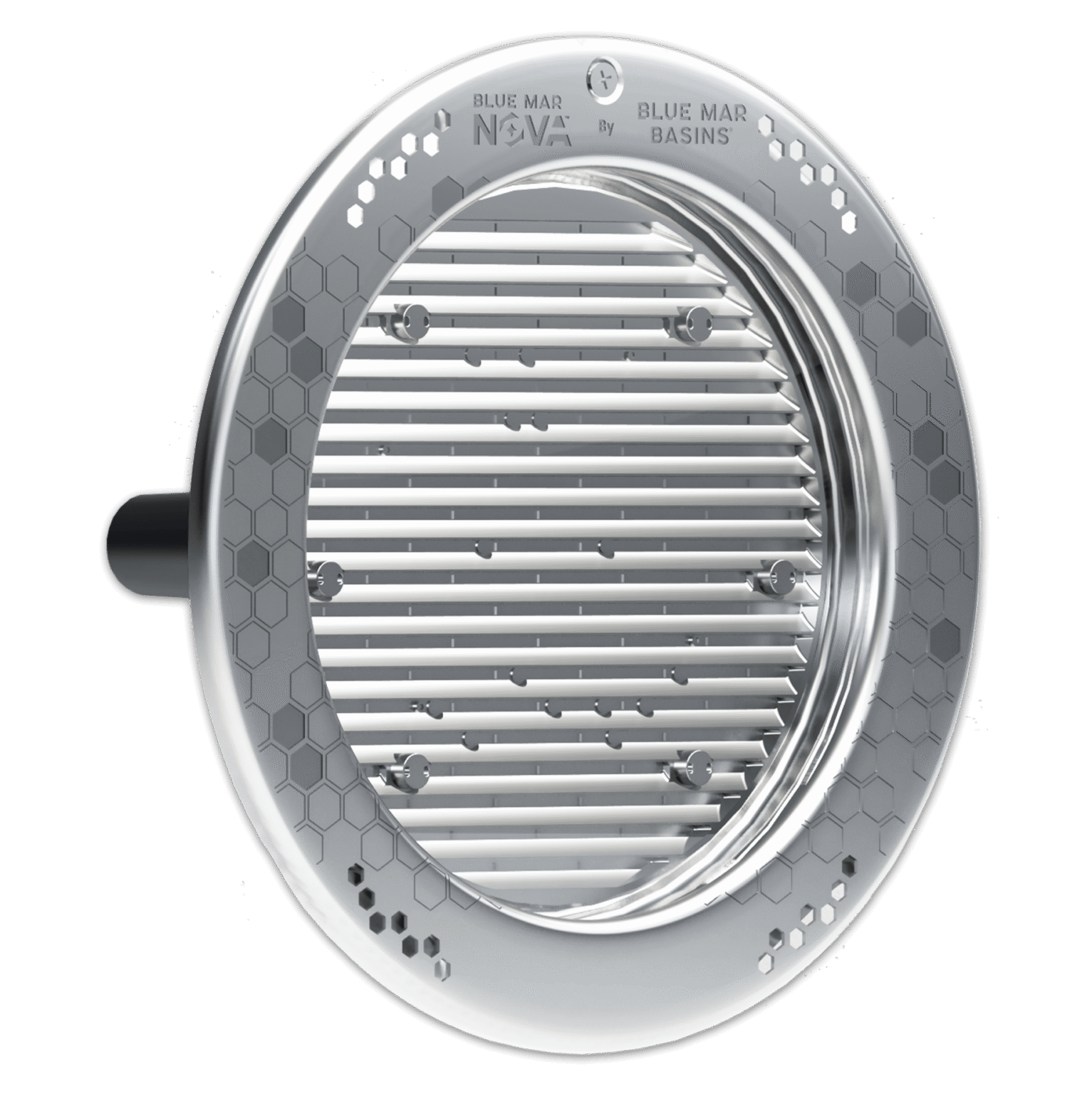

The Blue Mar NOVA Light Series is engineered to deliver superior underwater illumination for commercial aquatic facilities. Made in the USA and UL 676-listed, NOVA lights use advanced optics and a proprietary louvered lens to maximize light output while reducing light pollution.
Exclusively available in North America through POOLCORP Commercial Aquatics.
More
Power
Equivalent to 1,560 watt incandescent light to enhance every poolside moment
Fewer
Fixtures
Unparalleled illumination translating to less fixtures needed
Total
Impact
Engineered for everything from backyard pools to massive facilities
Brighter Whites or Deeper Hues.

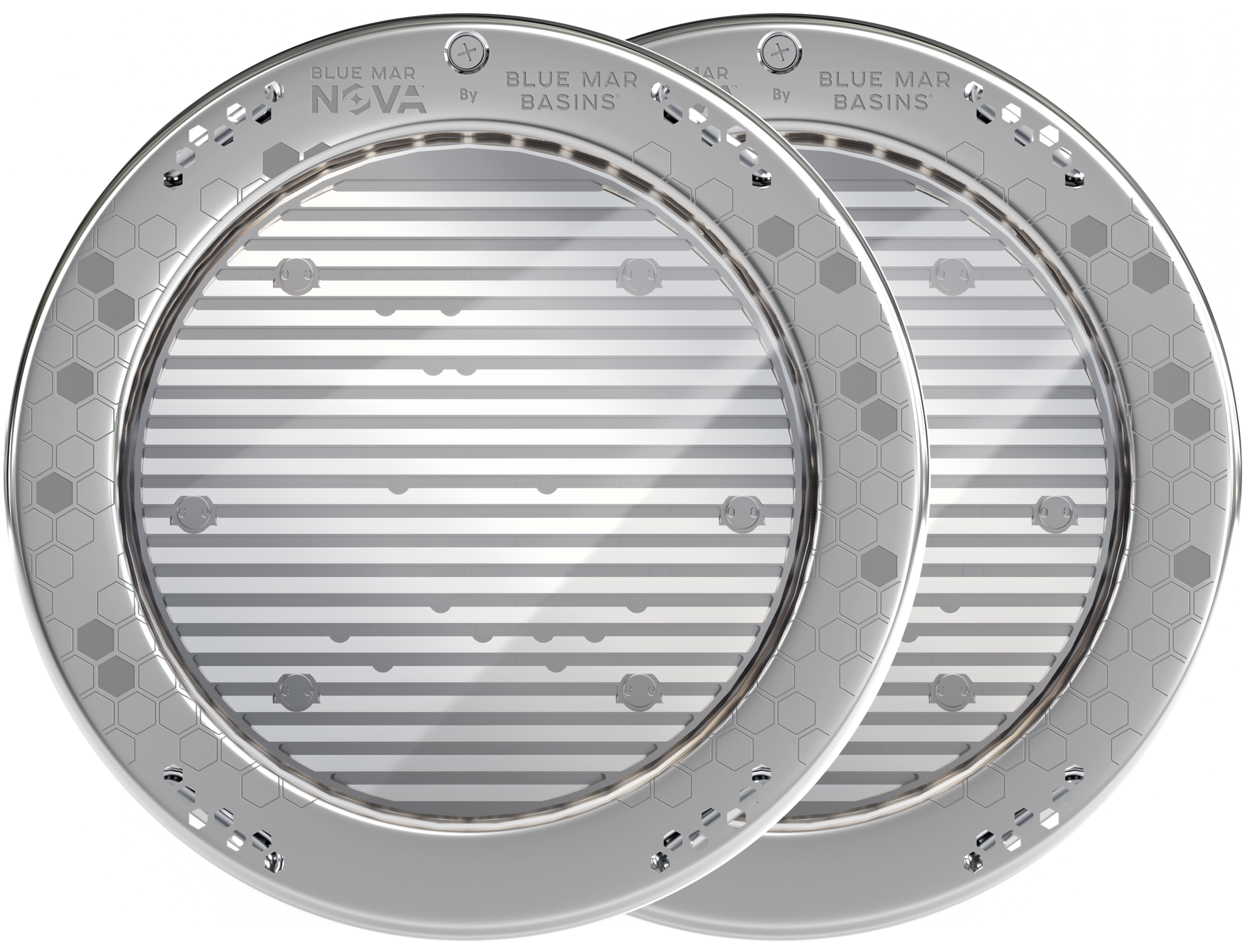

Both the Blue Mar Nova Bright White Light and the Blue Mar Super Nova RGBAW Light deliver unparalleled illumination, thanks to 100 High-Power LEDs. Whether seeking full color or solid white, choosing a light that's right for your project won't feel like a concession
- Unmatched Brightness, Longevity, & Protection
- Flexibility For Any Application
- Brightness Beyond Specification

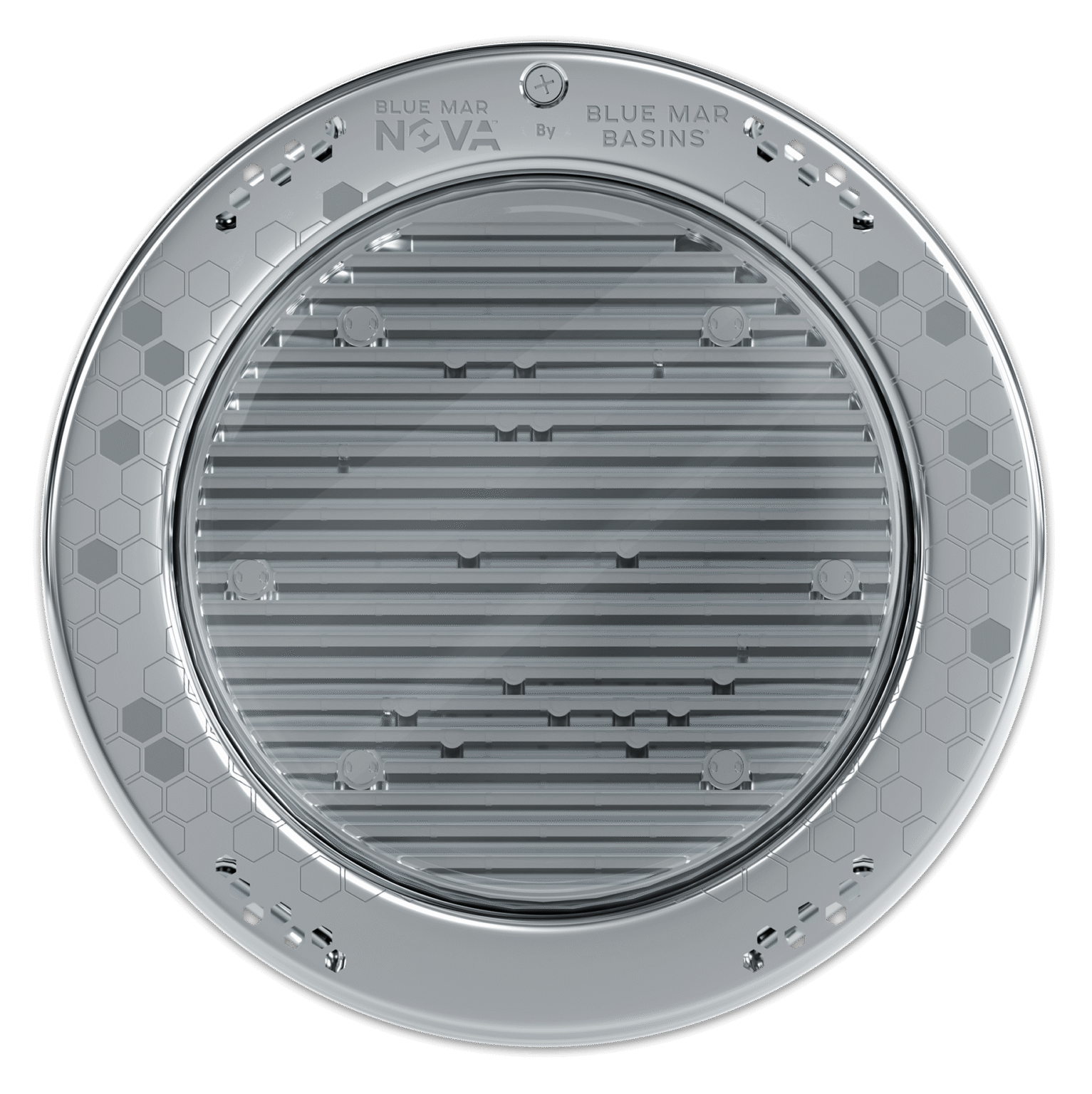

- Unique Louvered Lens Focuses Light Into The Pool
Color without compromise
- Rich color across the spectrum
- 100 latest-gen cree high-powered LEDs
- Advance chromaticity control
- Built-in DMX/RDM functionality
- IP68 watertight protection
- Made in USA
Specifications
Blue Mar Nova Bright White Light
Blue Mar Super Nova RGBAW Light
Details
| Product Number | BMB-30-3000 | BMB-30-3001 |
| Model Number | VPN BMB.PL.96W.W | VPN BMB.PL.96W.RGBAW.DMXRDM |
| Dimensions | 8″ Diameter (PAR64) | 8″ Diameter (PAR64) |
| Certifications | UL 676 Pool and Spa | UL 676 Pool and Spa |
| Installation | Submersible, niche-mounted with built-in BMB technology for natural water convection, providing enhanced cooling and extended light | Submersible, niche-mounted with built-in BMB technology for natural water convection, providing enhanced cooling and extended light |
| Origin | Made in USA | Made in USA |
Illumination
| Number of LEDs | 100 Latest Generation Cree High Power LEDs | 100 Latest Generation Cree High Power LEDs, selected to offer the widest chromaticity range |
| Lumen output | 9,841 lm | 4,915.9 lm |
| Color | 4300K | RGBAW |
| Beam angle | 120 degrees | 120 degrees |
| Optics | Custom designed for efficiency, optimal beam distribution and steering | Custom designed for efficiency, optimal beam distribution and steering |
| Equivalent visible light output | 1,560 watt incandescent light | N/A |
Power/Control
| Output power | 96 watts | 96 watts |
| Input voltage | 24VDC | 24VDC |
| Cable | 150 ft UL listed custom cable designed for submersion, full potting break into light housing | 100 ft UL listed custom 7 core cable designed for submersion, full potting break into light housing |
| Control | N/A | DMX / RDM / FoR |
| Self protection | Multiple layers of hardware and software thermal protection, built-in Overheat and Humidity monitor with visual alert and remote access, and built-in short circuit protection via non-resettable fuses | Multiple layers of hardware and software thermal protection, built-in Overheat and Humidity monitor with visual alert and remote access, and built-in short circuit protection via non-resettable fuses |
| Termination | N/A | Termination onboard settable via RDM |
| Repeater | N/A | Default 7 logical DMX channels. Other DMX personalities settable via RDM |
Material
| Material | 316 Stainless Steel | 316 Stainless Steel |
| IP Rating | IP68 – Certified Submersible up to 3m depth | IP68 – Certified Submersible up to 3m depth |
| Face ring | 316 Stainless Steel flush mount | 316 Stainless Steel flush mount |
| Protection glass | 8mm tempered safety glass (frosted glass available, consult BMP for details) | 8mm tempered safety glass (frosted glass available, consult BMP for details) |
Downloads:
Blue Mar Nova Bright White Light:
Blue Mar Super Nova RGBAW Light:
Contact us for more information and pricing.
